BuildYourCNC

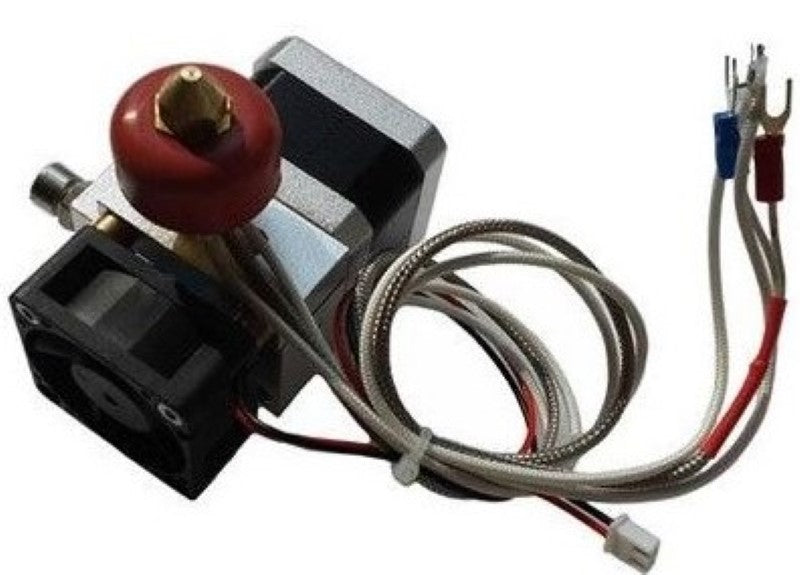

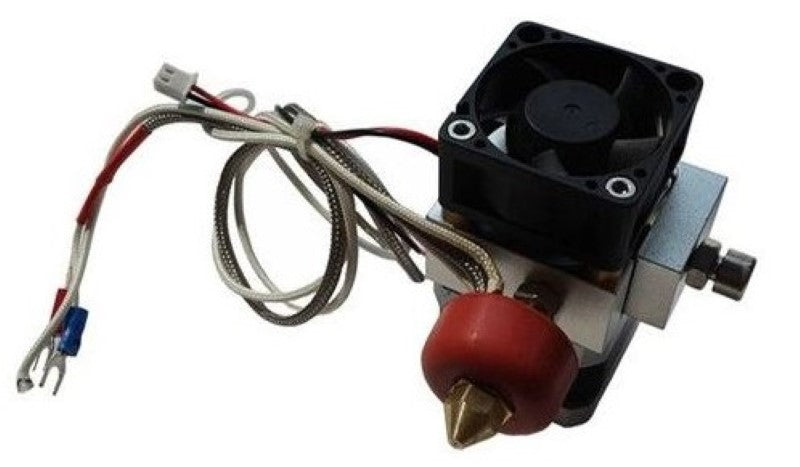

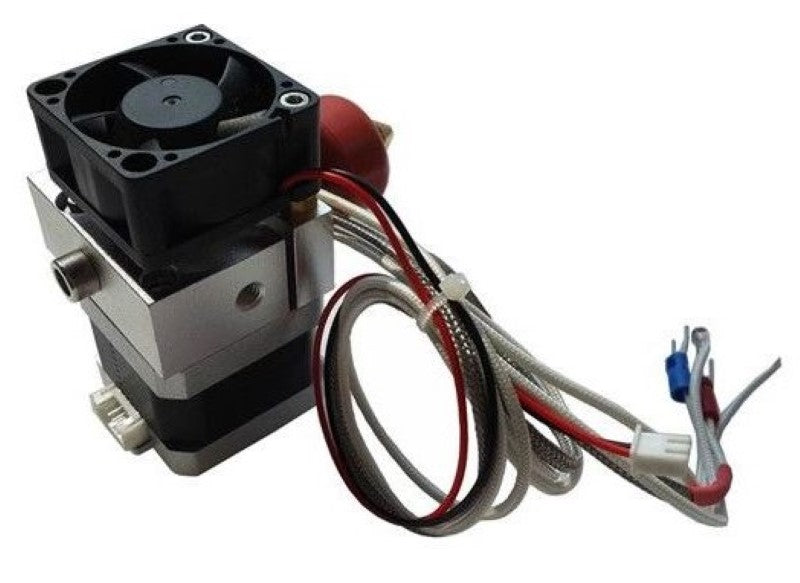

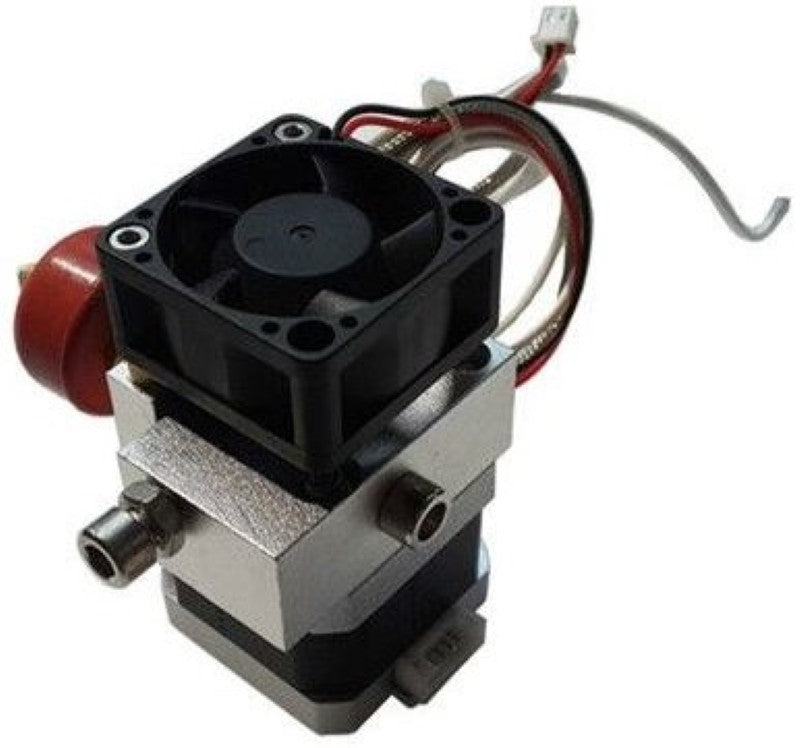

3D Printer Extruder

3D Printer Extruder

$149.00 USD
$149.00 USD
Sale Sold out
Shipping calculated at checkout.
Title

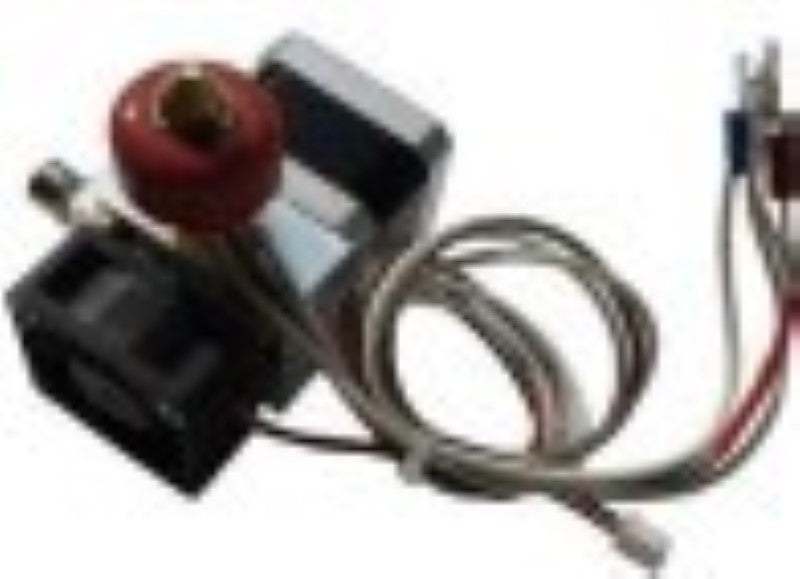

Insert a filament and a bead of plastic comes out of the other end. This extruder can be installed on machines that have 3 axes of movement. Includes hot end, nozzle, fan, heat sink, stepper motor, heating element and all hardware to assemble. To make this extruder work, you will need an extruder controller to monitor the temperature of the hot end and allow current to the heater cartridge to melt the plastic. with the 3D printer main board, Arduino and motor drivers and you have the makings of a 3d printer. This kit comes with all of the components needed for assembly, including the stepper motor.

View full details

Instructions

1
Step 1

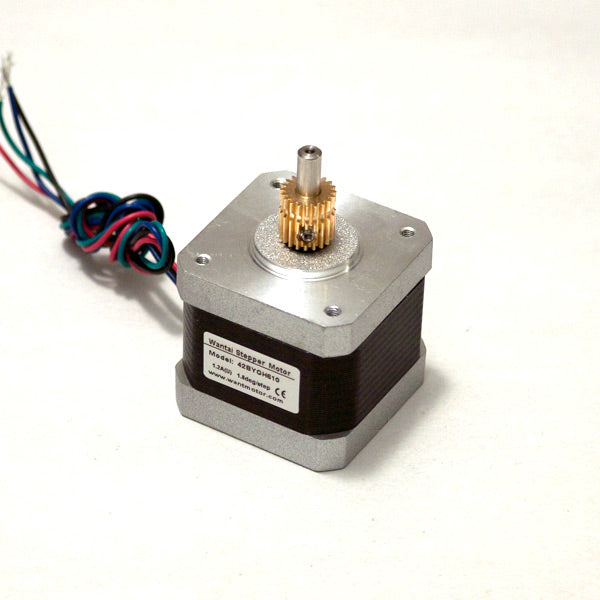

Insert serrated hub to the stepper motor. Position the hub as shown and tighten the set screw very tightly.
2
Step 2

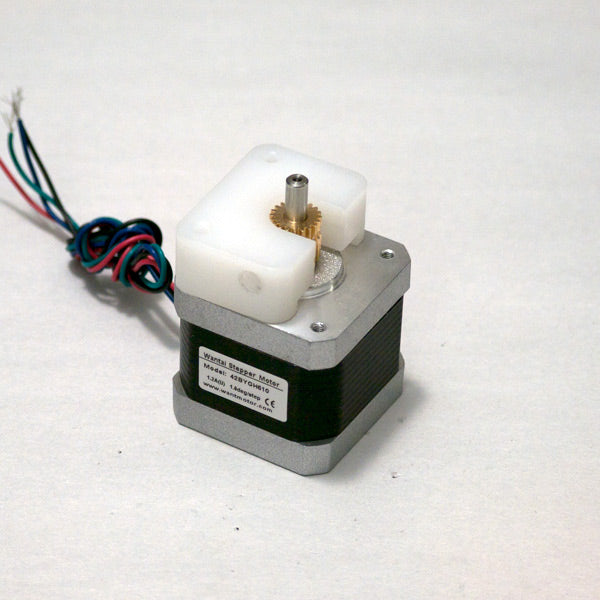

Place the white plastic component on the stepper motor as shown. This piece serves as a guide for the filament and pressure against the serrated hub using a set screw. Make sure the holes align with the stepper motor.
3
Step 3

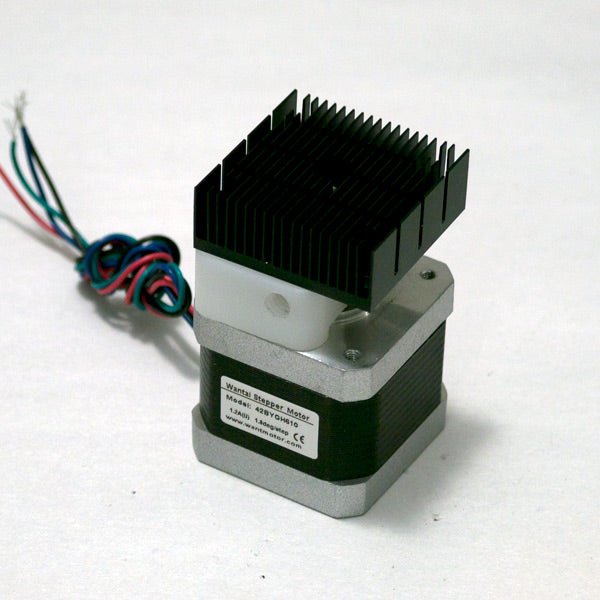

Place the black aluminum heat sink to the top of the white plastic component as shown. Make sure the holes align with the white plastic component and the stepper motor.
4
Step 4

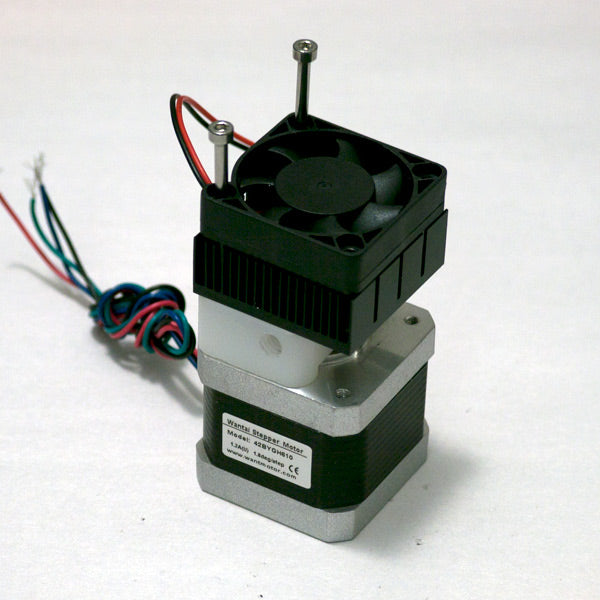

Add the fan to the top of this assemble with the mounting holes aligned. Insert two long screws into the holes shown and loosely fasten these screws into the stepping motor.
5
Step 5

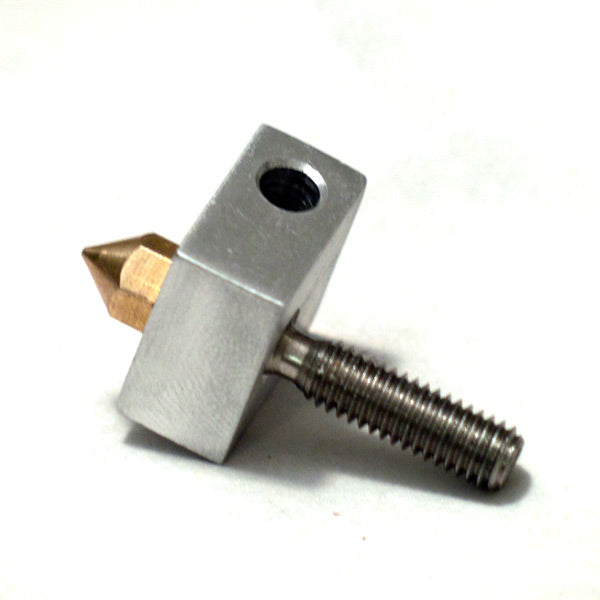

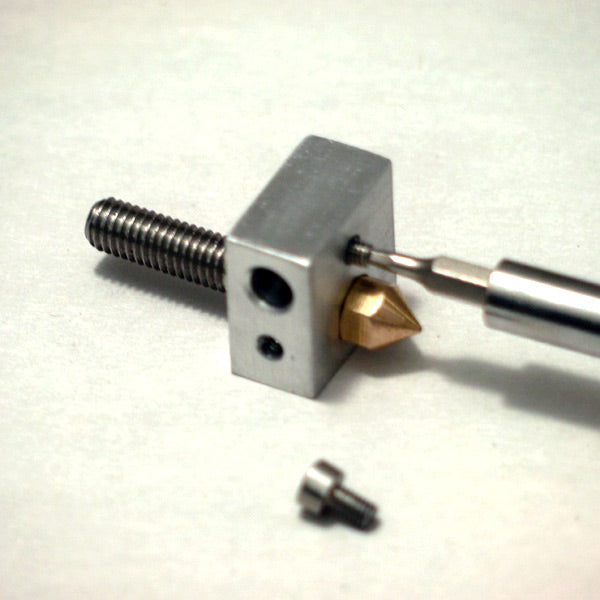

Assemble hot end components the nozzle, aluminum block and threaded rod as shown. Pay close attention to the orientation of the threaded rod.
6
Step 6
Insert the set screw into the hole shown. Do not drive the screw too much as the cartridge, or resistor will need to be inserted into the hole.
7
Step 7

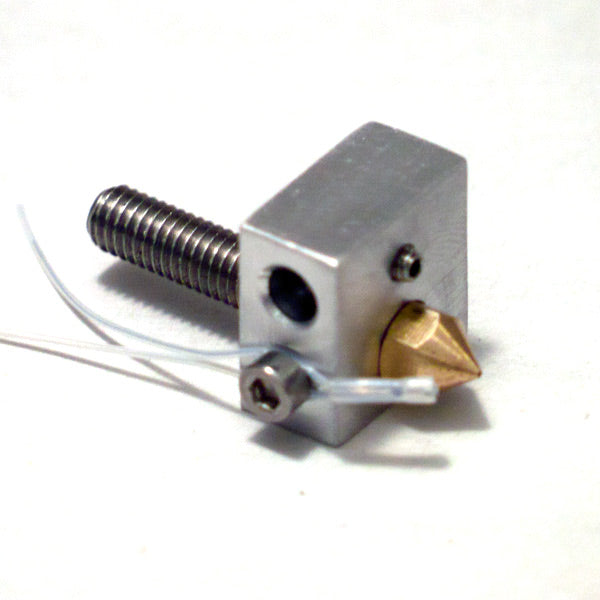

Insert the thermister or thermocouple (not included) mounting screw as shown loosely. Add the thermister between the screw and the aluminum block. Tighten the screw.
8
Step 8

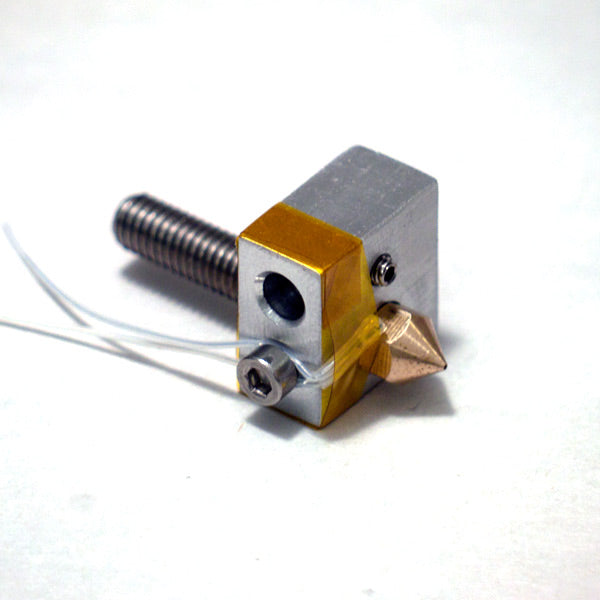

Wrap the thermister (or thermocouple) to the aluminum block as shown with Kapton tape. This will serve as a better hold for the thermister and position the thermister closer to the heated section of the hot end to provide a better temperature of the source of the extrusion.
9
Step 9

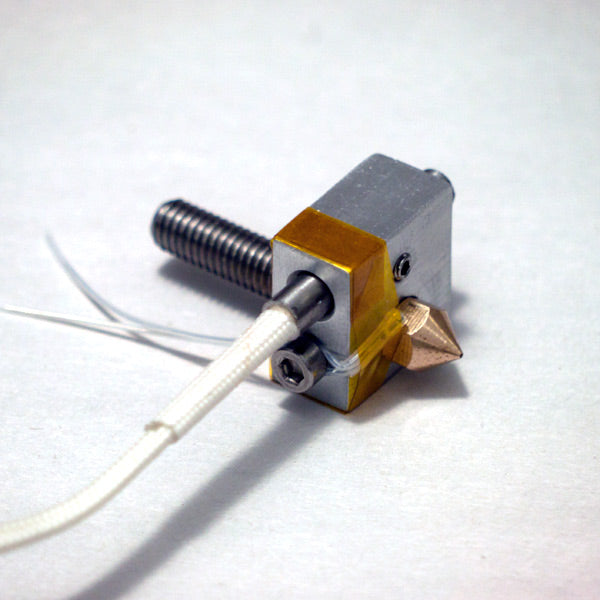

Add the heating cartridge or resistor to the hold. Tighten the set screw so this heating element securely fastened in place.
10
Step 10

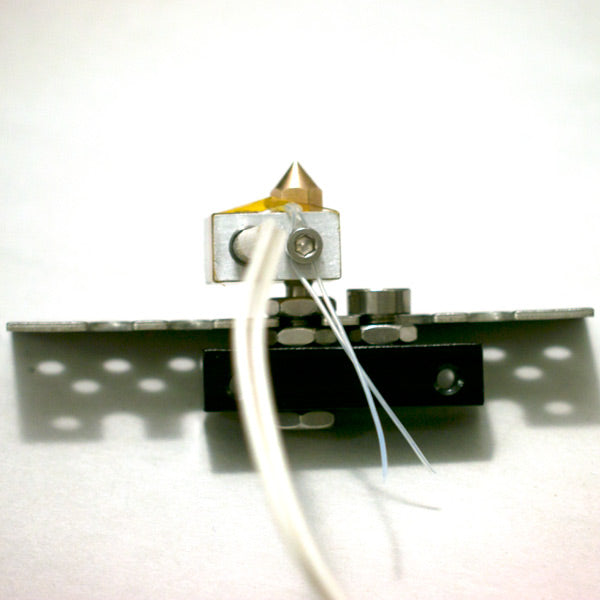

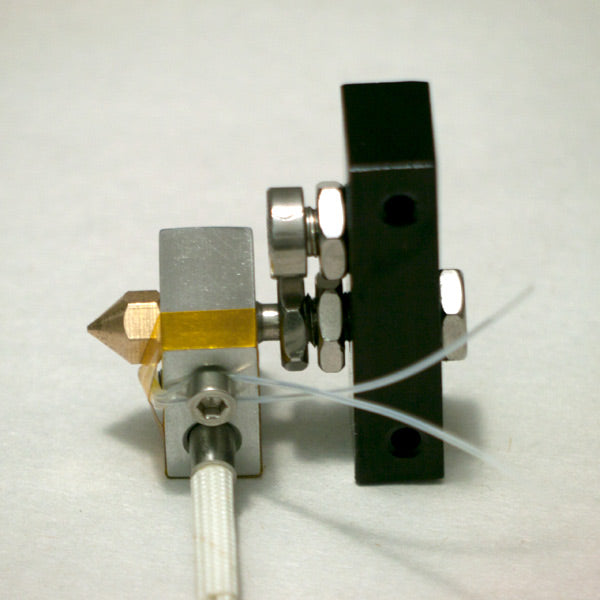

Add two nuts to the threaded rod as shown allowing for a little space between them for the mounting plate. Add the black component on the threaded rod and add a nut on the other side of the threaded rod to secure the black component. Add a nut and screw to the black component in the neighboring hole. Allow a bit of space between the nut and screw for the mounting plate. Orient the black component in this assembly so that the holes are farther away as shown in the image.
11
Step 11

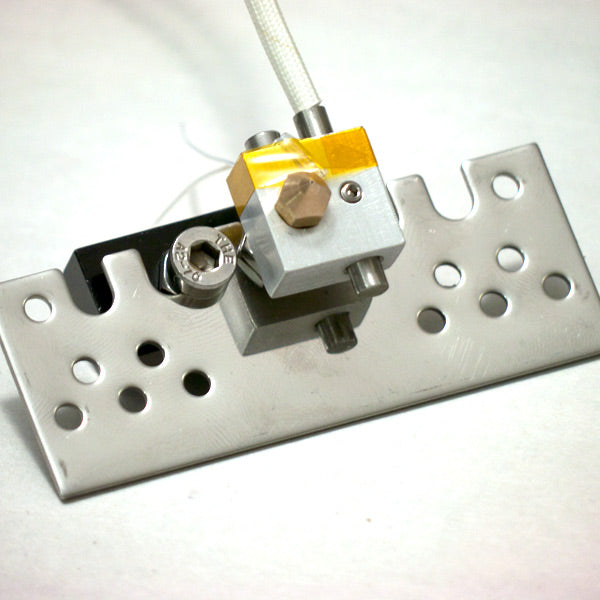

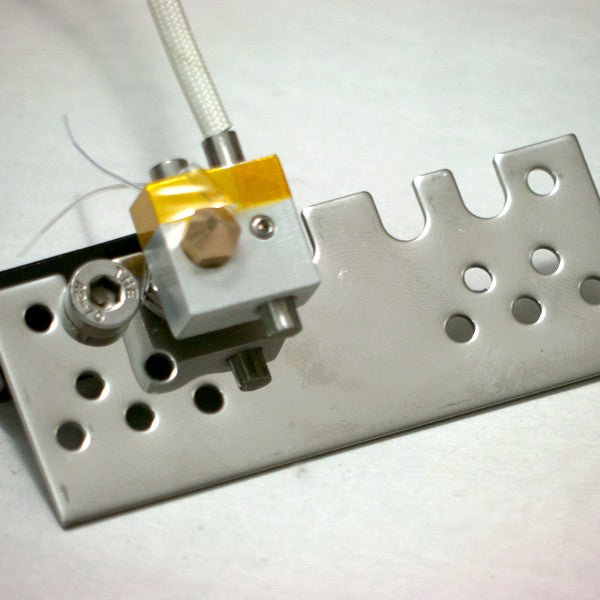

Add the mounting plate to the hot end assembly. Using a thin wrench, or pliers, tighten the nuts and screw around this plate to secure the plate in place. The assembly can be placed in multiple locations on this plate. Select the location that will serve the best for your machine.
12
Step 12
13
Step 13
14
Step 14

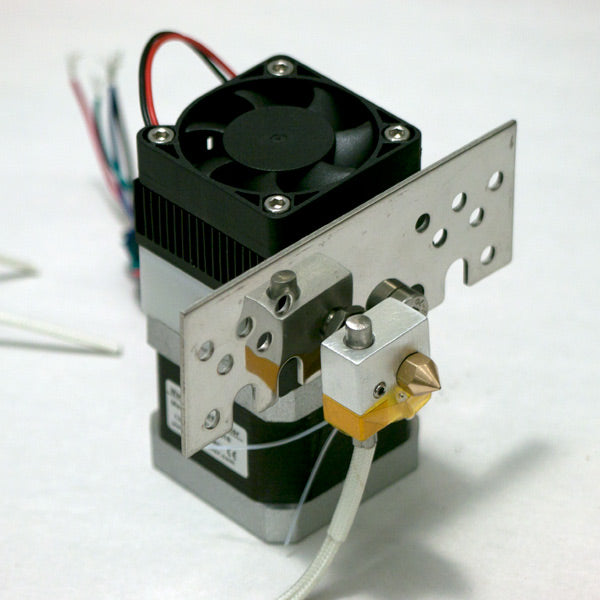

Add the hot end and plate assembly to the motor and cooling assembly. Insert the last two long screws through the fan/heat sink and black component until it reaches the stepper motor mounting holes. Tighten all four long screws.

Questions & Answers

Have a Question?

Ask a Question

  • I have the hot end listed on your site here :http://buildyourcnc.com/item/3D-Printer-Component-extruder#prettyPhoto what thermocouple or thermistor do I need for the hot end? it is not clear my original order was the email jeremy.adair@compassauto.net. please let me know what I need to buy. thanks.

    The best choice would be a type K thermocouple.

  • 3d printer motors not moving fast enough. How should I configure the motor drivers?

    This will depend on the 3D printer that you are using and the mechanics involved. Specifically regarding the motor drivers, software is really what determines the speed of the motor. If the computer is not able to product the high number of pulses that is required for faster motion, then you can reduce the microstepping and configure the software appropriately for the new microstepping so the resolution is corrected (steps/inch or steps/mm).

  • 3d printer filament is not feeding. It is heating and will melt and feed some but not consistently. Any tips on adjusting the set screw to get a good feed? I'm using PLA with the MK7 stepstruder being sold on the site.

    This may be less of an issue of the grasp that the feeder has on the filament and more an issue of the heat getting to the plastic at the hot end, or having enough heat at the hot end. Try increasing the temperature and try again. If that doesn't work, make sure you are insulating the hot end sufficiently to keep the hot end hot enough to keep the plastic melted.
