4th Axis with Tail Stock 100mm Chuck

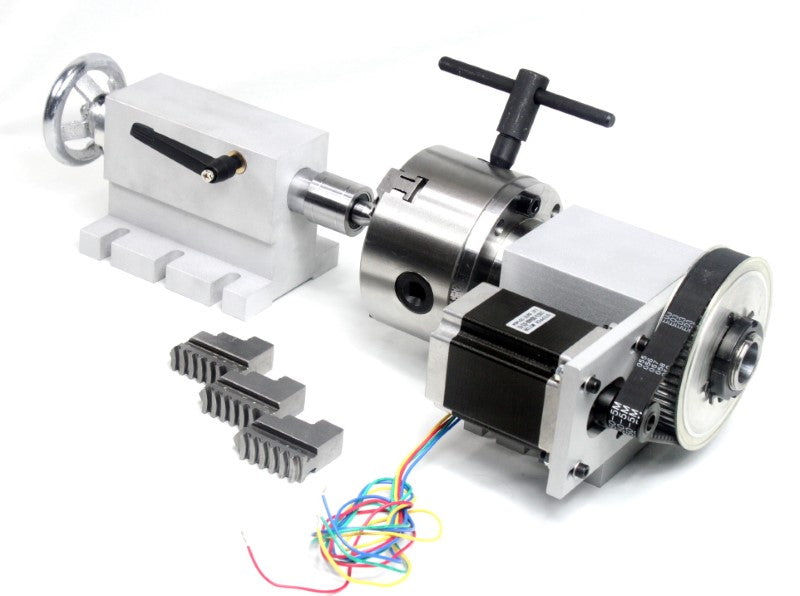

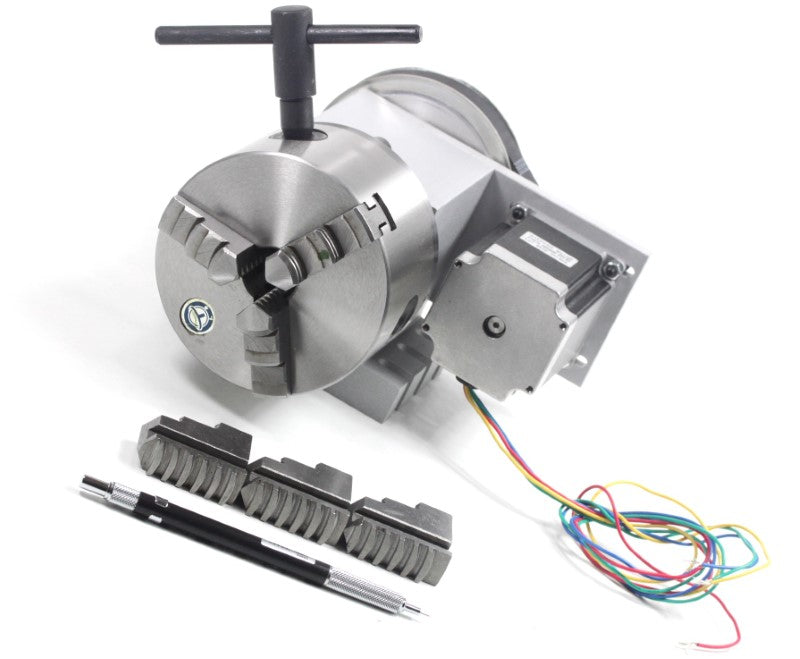

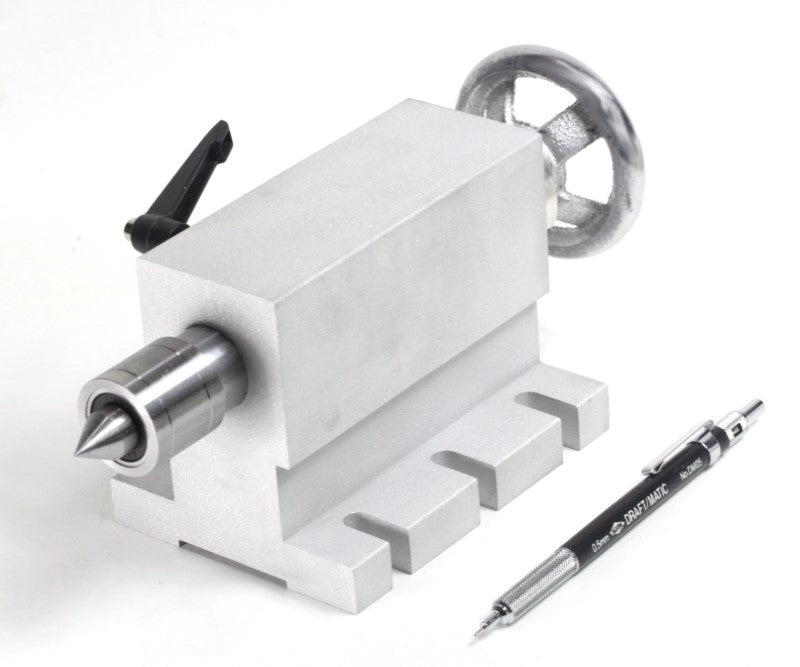

This is a 4th axis which will add additional functionality to your machine. It comes with head stock, tail stock, and integrated stepper motor. It also includes 2 sets of Jaws for inside or outside diameter gripping. The 4th axis adds a great deal of additional functionality to your CNC machine that you wouldn't normally get otherwise. A 4th axis can be used to cut along an arc, or be used in what is called indexing mode or continuous mode, meaning the cutting is done from a stationary point or while in full (continuous) rotation. The 4th axis makes machining something complex like a gear possible. Specifications for 4th Axis: Chuck: K11 100mm (3.93") 3-jaw chuck Center hight: 65mm (2.55") Hollow shaft diameter: 21mm (0.826") Total height: 115MM (4.52") Angle: 0.3 degrees / step Reduction ratio: 6:1 Stepper motor: Nema 23 stepper motor Dimension: 210x168x115mm 8.26"x6.61"x4.52" Gross weight: 10.5kg (23.14 lbs) Tailstock: Center Height: 65MM Stretch distance: 50MM Weight: 2.1KG How to wire the stepping motor that is attached to the 4th axis: The motor will have red, green, yellow and blue wires coming from the motor. The connections are as follows: - Red to A+ - Green to A- - Yellow to B+ - Blue to B-
