C76 UC300ETH Multifunction CNC Breakout Board with Spindle Control & Optoisolated I/O

C76 UC300ETH Multifunction CNC Breakout Board

The C76 UC300ETH Multifunction Board is a CNC breakout board designed to give full access to the UC300ETH Ethernet motion controller’s power, discrete signals, analog I/O, spindle control, relay control, and safety monitoring features. It helps turn a UC300ETH-based control system into a cleaner, more organized, and easier-to-wire CNC control cabinet.

Quick Answer

• What it is: A multifunction CNC breakout board for the UC300ETH Ethernet motion controller.
• What it does: Breaks out UC300ETH signals into organized terminals for inputs, outputs, spindle control, relays, analog I/O, and expansion wiring.
• Best for: CNC routers, CNC mills, CNC retrofits, and DIY CNC control cabinets using a UC300ETH-based motion control setup.
• Important: This board is designed to work with the UC300ETH motion controller. The UC300ETH controller is not included unless purchased separately or as part of a bundle.

Key Features

• Designed for UC300ETH motion control: Built specifically as a breakout and interface board for the UC300ETH Ethernet CNC motion controller.
• 5 ports for discrete signals: Emulates 5 ports for discrete CNC input and output signals.
• Analog I/O access: Includes access to an analog port for expanded CNC control applications.

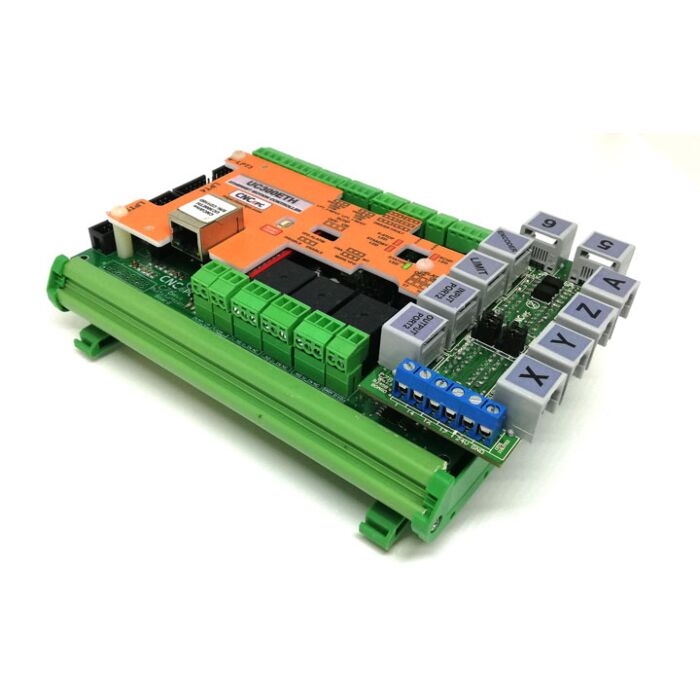

• 3 expansion ports: Includes 3 expansion ports for adding compatible breakout boards, relay boards, or C34-style connector boards.
• PWM spindle speed control: Built-in PWM-based speed control helps support spindle control wiring in compatible CNC systems.
• Built-in relays: Includes two built-in electromechanical relays with normally open and normally closed positions for spindle control.
• Safety and fault monitoring: Supports monitoring for E-stop, safety charge pump, driver fault, and VFD fault signals.

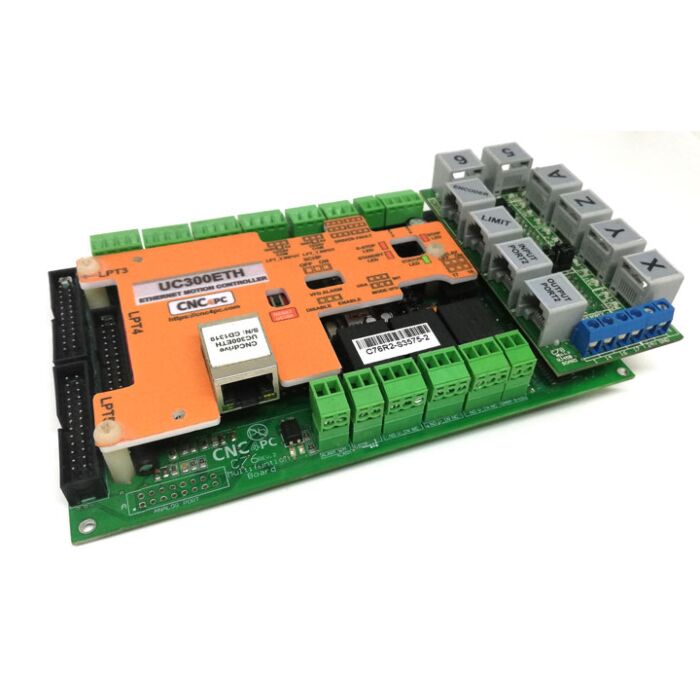

• C34 connector board compatibility: Compatible with the C34 connector board family for cleaner wiring to popular drives, including step, direction, fault, and enable signals.
• Independent optoisolation: Independent optoisolation circuits help protect the CNC control system from electrical noise and signal issues.
• Status LEDs: Input status LEDs make setup, diagnostics, and troubleshooting easier.

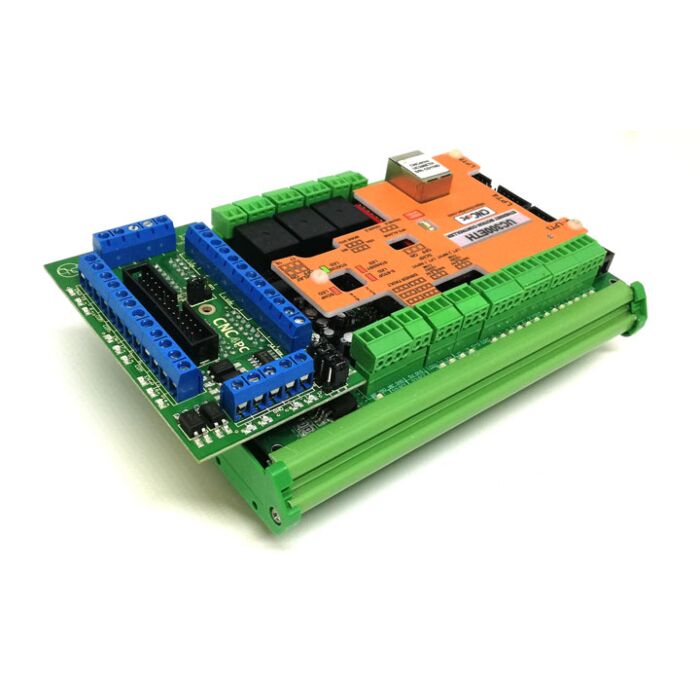

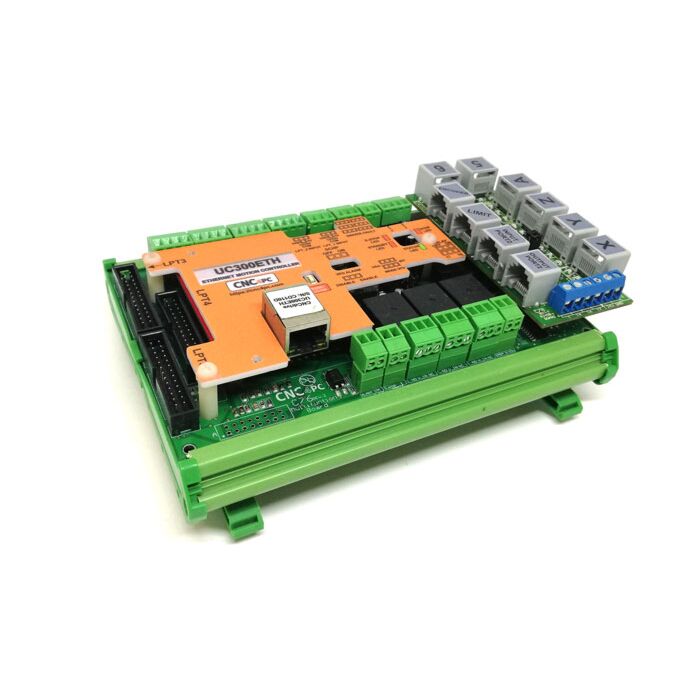

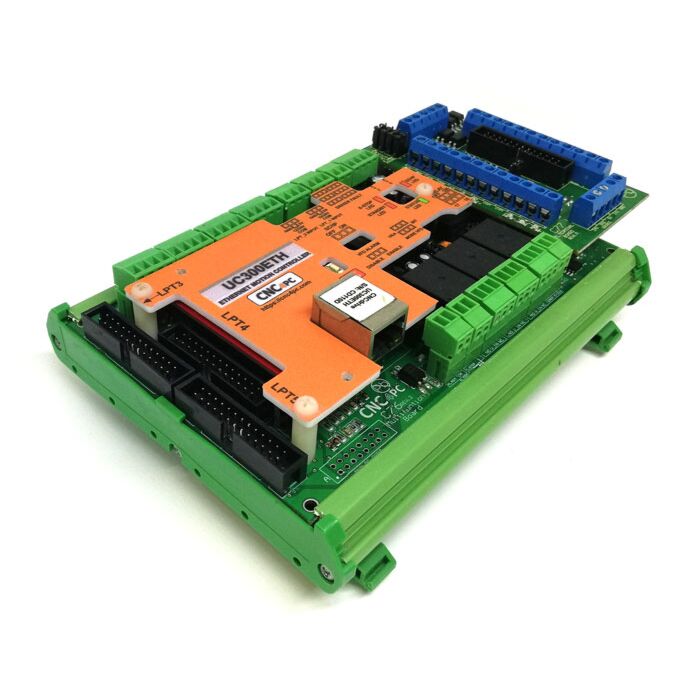

• DIN rail mountable: Designed for organized CNC electrical enclosure and control cabinet installations. Add the DIN Rail Support for C76 to clip the board (with the UC300ETH on it) onto 35 mm DIN rail.

C76 or C94? The short version

Both boards carry the UC300ETH and share the same port layout, relays, PWM spindle control, and safety charge pump. The C76 is the fuller-featured board: VFD-fault monitoring, dedicated 5V high-speed encoder inputs, pluggable screw terminals, and plug-in RJ45 drive cabling through the C34 connector board family. The C94 is the simpler, lower-cost board with fixed screw terminals and heavier 60V/2A open-collector outputs.

• Pick the C76 for servo builds, spindle encoders (rigid tapping or threading), VFD alarm handling, or a production cabinet you will service often.
• Pick the C94 for a stepper-driven router, plasma table, or laser where you want clean terminal wiring at the lowest price.

Why CNC Builders Use the C76

The UC300ETH is a powerful Ethernet motion controller, but wiring a full CNC machine directly into a controller can become messy fast. The C76 makes the control system easier to build by organizing the motion controller’s signals into usable terminals, relay connections, expansion ports, and safety inputs.

• Helps reduce messy CNC cabinet wiring
• Makes UC300ETH signal access easier to understand and service
• Simplifies wiring for inputs, outputs, spindle control, relays, and drive signals
• Supports a cleaner DIN rail control cabinet layout
• Improves troubleshooting with visible status LEDs
• Helps create a more professional CNC electronics installation

Best Applications

• UC300ETH CNC motion control systems
• CNC router control cabinets
• CNC mill electronics upgrades
• CNC machine retrofit projects
• DIY CNC machine builds
• Stepper driver and servo driver wiring setups
• Spindle speed control and relay control systems
• CNC systems that need E-stop, VFD fault, driver fault, and safety charge pump monitoring

Technical Highlights

• Controller compatibility: Designed for the UC300ETH Ethernet motion controller.
• Signal access: Emulates 5 ports for discrete signals and 1 port for analog signals.
• Expansion: 3 expansion ports for compatible add-on boards.
• Inputs: Supports TTL or industrial-type open-collector inputs.
• Outputs: Supports TTL or industrial-type open-collector outputs.
• Power terminal: 10-30VDC input for powering the board logic.
• Output level: +5VDC TTL outputs at 24mA.
• Inputs: 18 input ports.
• Spindle control: Built-in PWM-based speed control and relay support.
• Safety monitoring: E-stop, safety charge pump, driver fault, and VFD fault monitoring.
• Mounting: DIN rail mountable for CNC control cabinet installation.

Software and Control System Use

• The C76 is used as the interface board between the UC300ETH motion controller and your CNC machine wiring.
• Common UC300ETH-based CNC setups may use UCCNC, Mach3, or Mach4 depending on the controller, license, plugin, and configuration.
• Always verify software compatibility, licensing, plugin requirements, and wiring configuration before installation.
• Review the user manual before connecting drives, spindle control, limit switches, E-stop circuits, or VFD fault wiring.

Compatibility Note

• This product is intended for CNC systems using the UC300ETH Ethernet motion controller.
• This listing is for the C76 board only unless the product option clearly states otherwise.
• The UC300ETH controller, stepper drivers, servo drives, power supplies, spindle/VFD hardware, switches, and wiring are sold separately unless stated otherwise.
• Confirm your drive type, signal voltage, power supply, spindle/VFD setup, and CNC software before ordering.
• If you are replacing an older breakout board, compare your required I/O, relay, spindle, E-stop, and fault wiring before purchase.

Need the UC300ETH Controller Too?

The C76 is designed to work with the UC300ETH Ethernet motion controller. If you are building a new UC300ETH-based CNC control system, the bundle is usually the better choice because it includes both the controller and the breakout board together.

• Better for new builds: Includes the UC300ETH controller and C76 breakout board as a matched setup.
• Cleaner control cabinet wiring: Gives you Ethernet motion control plus organized terminals, relays, spindle control, and optoisolated I/O.
• Less guesswork: Helps avoid buying the C76 board without the controller it is designed to work with.

Recommended Add-Ons

• DIN Rail Support for C76 - clips the C76 (with the UC300ETH on it) onto 35 mm DIN rail. One support carries the whole assembly. This support does not fit the C94.
• 35 mm DIN Rail, 12 inch - slotted aluminum rail for the cabinet back panel.
• 24V 3.2A DIN Mount Power Supply - powers the board logic and the UC300ETH with headroom for sensors and relay coils.

What You Receive

• C76 UC300ETH Multifunction CNC Breakout Board
• Built-in terminals and connections for CNC control cabinet wiring
• Access to discrete signals, analog I/O, relay outputs, and spindle control features
• DIN rail mountable board layout for organized enclosure installation
• Access to the user manual below for wiring and setup reference
• UC300ETH controller and DIN rail support are not included

Documents

• Download User Manual C76 Rev.4 v2.1
• UCCNC Profile Installer for the C76
• Variable Speed Control (0-10V VFD wiring) PDF
• Configuration of Control Software PDF

Before You Order

• Choose this board if you already have a UC300ETH controller and need the matching multifunction breakout board.
• Choose the UC300ETH + C76 bundle if you need both the Ethernet motion controller and the breakout board.
• Do not buy it assuming it is a standalone CNC controller by itself. It is the breakout/interface board for the UC300ETH control setup.
• Use this board when you need organized I/O, spindle control, relay control, optoisolated inputs, and cleaner cabinet wiring.
• Choose the C94 instead if you want the lower-cost board for a stepper router, plasma table, or laser and do not need VFD-fault monitoring, encoder inputs, or RJ45 drive cabling.
• Add the DIN Rail Support for C76 if the board is going on DIN rail.
