CNC Machine Hardware and Plans

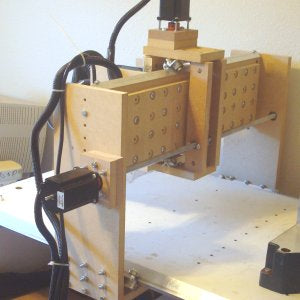

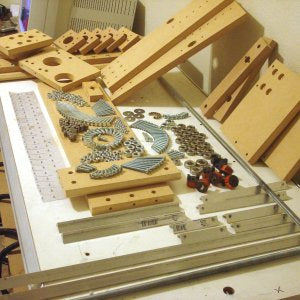

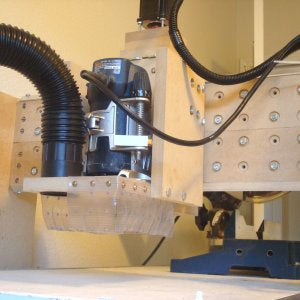

These are my hand picked components and hardware for the perfect leap into this CNC process. You will also get the cut sheets and plans for cutting the necessary MDF pieces for a CNC design that can be made with conventional power and/or hand tools. Includes all of the hardware necessary to build the CNC router: Linear bearing angles (bored and tapped), cross dowels, couplings (1/4" to 1/2" on all three axes), bearings for the linear rails and lead screws (24 - 5/16" and 6 - 1/2") , and the nuts and bolts at various sizes. The lead screws and rails are not included. Now, go out and buy that $9.00 MDF and get started. This package is available now and shipping! Note: As of 11/7/2016 The CNC Plans and Hardware Kit has been discontinued. This page will be left here as a resource for anyone who is still following the original book and plans. The size of this machine if built according to the measurements in the plans, will travel 40" in the x direction, 20" in the y direction and 5" in the z direction. Other table sizes are possible by altering the measurements in the plans and providing the necessary reinforcements. mechanical components include couplers. This kit also contains many enhancements from that of the tutorial. The y-axis is appropriately reinforced to minimize any deflection. The x-axis is also well reinforced. Each piece of the kit is precisely cut. The Combo comes with all of the hardware needed for assembly, couplers, bearings and the plans for the MDF pieces. The ready made MDF pieces shown in this image is for illustrations purposes only. Parts that you will need are the MDF sheets, aluminum or steel angles, lead screws, electronics for interfacing to the computer and software which can be gotten for free in many cases. Parts that are included in the Hardware kit:
These items are offered to minimize the effort to purchase all of the hard to find components and the many types of fasteners. Plans and Assembly DVD Screws: Bolts: Nuts: Mechanical:
Items not Included:
Other items that you will need to completely construct this CNC machine and make it work:
