DIN Rail Support for Ethernet SmoothStepper ESS
Mount a standalone Ethernet SmoothStepper ESS cleanly inside a CNC control cabinet or electrical enclosure with this DIN rail support. This mounting accessory helps keep the ESS secure, organized, and easier to service in professional DIN rail-based control panel builds.
Which DIN rail support do you need?
This one: DIN Rail Support for ESS
Get this support if you are running the ESS by itself with no C25XP underneath it, for example with ribbon cables to a different breakout board. It is sized for the bare ESS board.
- ESS purchased on its own
- ESS wired to a C10, C82, or other ribbon-cable breakout board
DIN Rail Support for C25XP
Get the C25XP support if you have the C25XP breakout board or the ESS + C25XP bundle. The ESS plugs directly into the C25XP, so the C25XP is the board that sits on the rail and one support carries both.
View DIN Rail Support for C25XPWhat this DIN rail support does

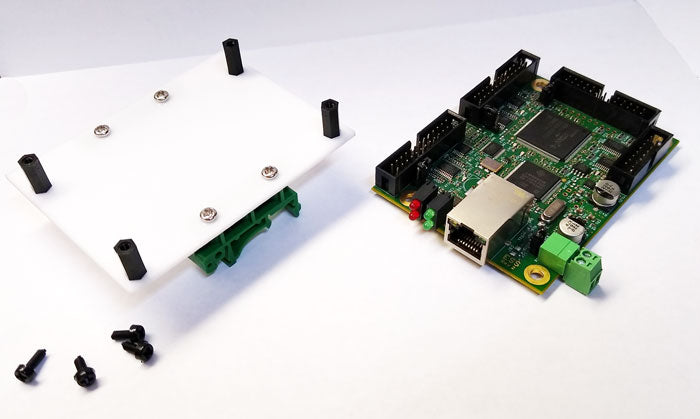

This DIN rail support is a mechanical mounting accessory for a standalone Ethernet SmoothStepper ESS. It allows the bare ESS board to be mounted neatly onto 35 mm DIN rail inside a CNC control cabinet, instead of being left loose or mounted in a less organized way.
Important: This product does not add electrical features to the Ethernet SmoothStepper. It does not add inputs, outputs, relays, spindle control, safety monitoring, or screw terminals. It is strictly a mounting support for cleaner control cabinet installation.
Best used for
- Mounting the Ethernet SmoothStepper ESS inside a CNC control cabinet
- DIN rail-based electrical enclosure builds
- Cleaner CNC control box layouts
- Mach3 and Mach4 ESS control system installations
- CNC retrofit projects using the Ethernet SmoothStepper
- Organized control panels with serviceable wiring layouts
Why use DIN rail mounting?
- Keeps the ESS secured inside the enclosure
- Makes the control cabinet look cleaner and more professional
- Helps organize CNC electronics in one panel layout
- Makes future service or upgrades easier
- Reduces loose-board mounting issues inside the control box
Recommended pairings
Ethernet SmoothStepper ESS
The ESS is the Ethernet motion controller this DIN rail support is designed to mount.
View ESS product pageC25XP Breakout Board
Pairing the ESS with the C25XP? The ESS plugs into the C25XP, so you need the DIN Rail Support for C25XP, not this one.
View DIN Rail Support for C25XPESS + C25XP Bundle
The bundle ships with the ESS mounted on the C25XP. To put it on DIN rail, add the DIN Rail Support for C25XP. This ESS-only support does not fit the bundle.
View ESS + C25XP bundleView DIN Rail Support for C25XP
Where this fits in your CNC control system
| Part | What it does |
|---|---|
| Ethernet SmoothStepper ESS | Motion controller for Mach3 and Mach4 CNC systems |
| C25XP Breakout Board | Wiring/interface board that adds screw terminals, relays, spindle control, and safety features for the ESS |
| DIN Rail Support for ESS (this product) | Mechanical mounting support that secures a standalone ESS onto DIN rail inside a control cabinet |
| DIN Rail Support for C25XP | Mounts the C25XP (with the ESS plugged into it) onto DIN rail. Use this one for the C25XP or the ESS + C25XP bundle. View product |
Important compatibility note
- This is a mounting accessory for a standalone Ethernet SmoothStepper ESS only.
- It does not fit the C25XP breakout board. If your ESS is plugged into a C25XP, or you ordered the ESS + C25XP bundle, order the DIN Rail Support for C25XP instead. You do not need both.
- Fits standard 35 mm top-hat (TS35) DIN rail. DIN rail is sold separately.
- The Ethernet SmoothStepper ESS is sold separately.
- This DIN rail support does not replace the ESS, C25XP, motor drivers, power supplies, relays, switches, or CNC control software.
Build a cleaner ESS control cabinet
Add this DIN rail support when mounting a standalone Ethernet SmoothStepper inside a CNC control enclosure. It is a simple accessory, but it helps make the finished control cabinet cleaner, more organized, and easier to service. Running the C25XP? Grab the C25XP support instead.
