PoStep25-32 Stepper Driver

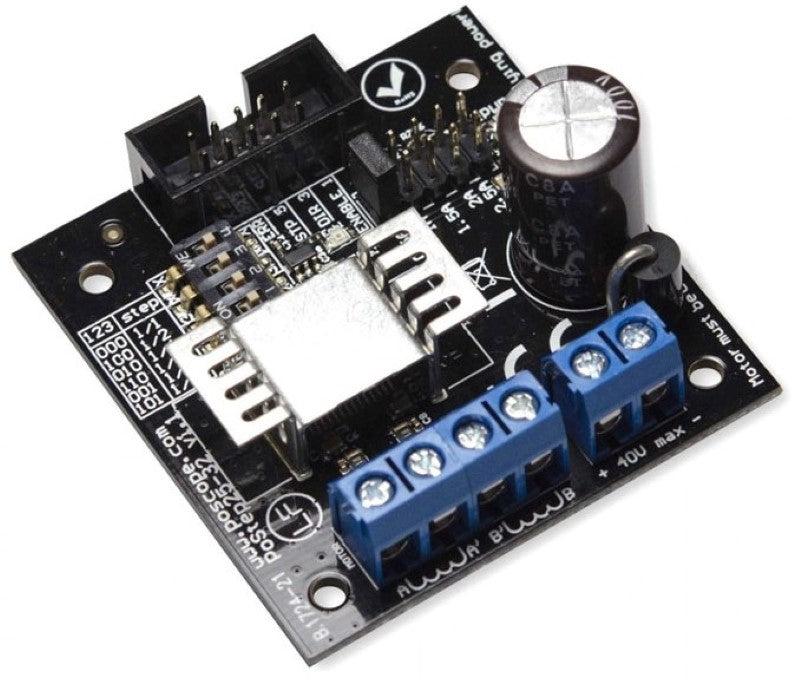

This is the PoStep25-32 with a 0.5 to 2.5 Amps Phase Current.

PoStep25-32 Downloads

0.5 to 2.5 Amps Phase Current

Simple current setting with jumper

Compatible with 4, 6, and 8 wire stepper motors of any voltage

+10 VDC to +30 VDC Power Supply

1, 2, 4, 8, 16 and 32 Micro-steps per Step

Mixed decay mode for smoother moving of motors

3,3V and 5V logic compatible inputs

250 KHz Max Step Rate

0 °C To 70 °C Operating Temperature

LED Power, Error and Enable Indicator

Improved thermal managing

Small Size: 50 mm X 52 mm
